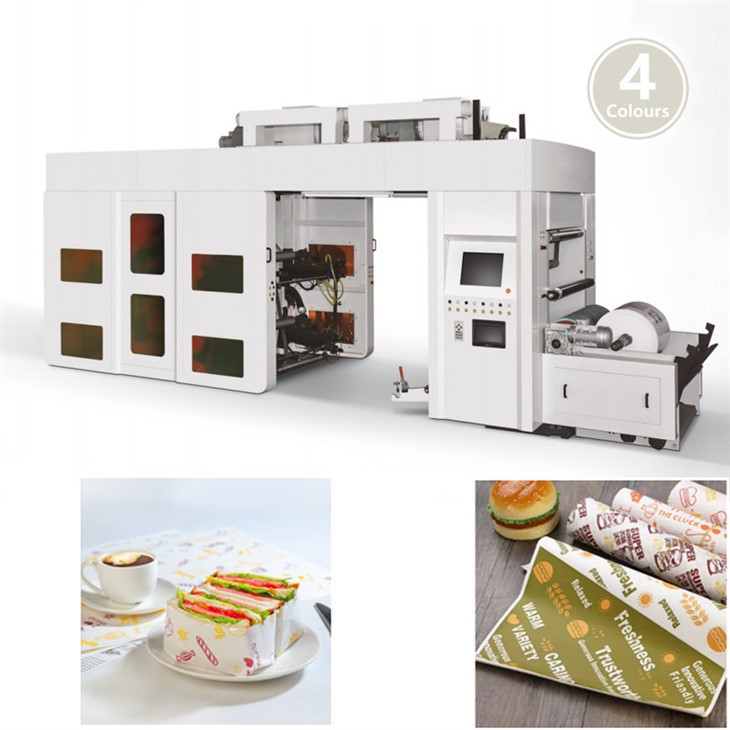

Automatic Flexo Printing Press Machine
1. Ceramic anilox roll.
2. Camera 1pc.
3. Newly designed wind tunnel with drying system for high speed operation.
4. Plc touch screen.
YTB-A

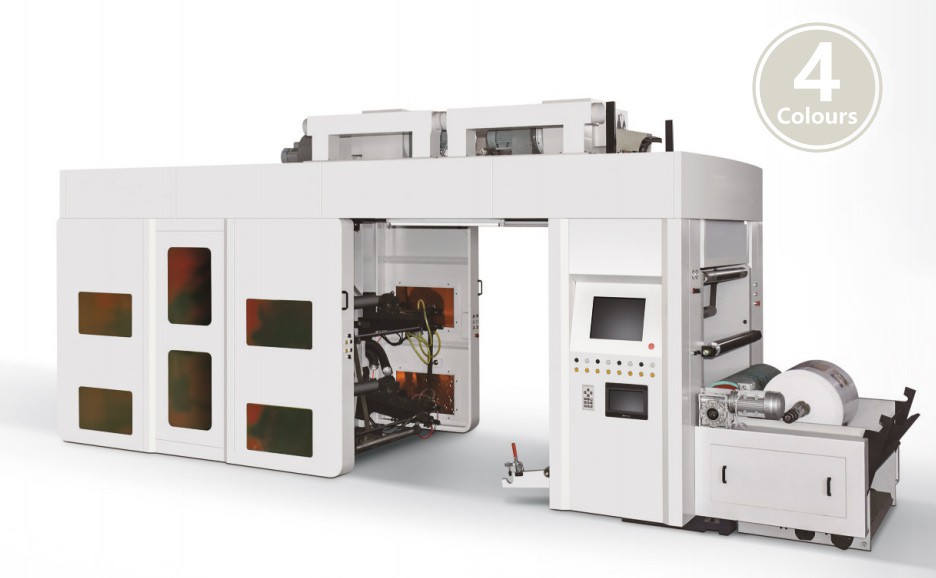

4 Colours High Speed Stack Type Flexo Printing Machine
STANDARD:

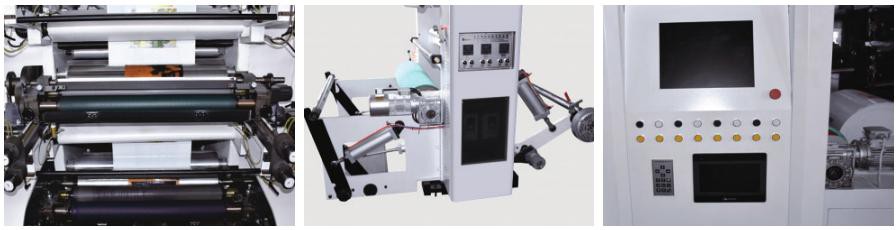

1. Ceramic anilox roll.
2. Camera 1pc.
3. Newly designed wind tunnel with drying system for high speed operation.
4. Plc touch screen.
5. Pneumaitc auto loading and unloading.
|
Main Parameter |
|||||
|
Machine model |
QTH-CI 4600 |
QTH-CI 4800 |
QTH-CI 41000 |
QTH-CI 41200 |
|
|
Max.material width |
600mm |
800mm |
1000mm |
1200mm |
|
|
Maxprintnig width |
560mm |
760mm |
960mm |
1160mm |
|
|
Suitable for material |
PAPER:15~300g/㎡,NONWOVEN:15-120G PVC:10~120μm,OPP:10~100μm,BOPP:10~100μm,PE:15~150μm NY:10~120μm,PET:10~100μm,CPP:10~100μm |
||||
|
Colours |
4色(4 Colours) 4+0,3+1,2+2 |
||||
|
Printing length |
300-1000mm |
||||
|
Principle of work |
Synchronous belt driving/Gear |
||||
|
Machine speed |
150m/min |
||||
|
Printing speed |
100m/min(Single doctor blade) 120m/min(Chamber doctor blade-optional) |
||||
|
Printing precision |
±0.15 mm |
||||
|
Adjusting of register |
Electric motorcontrol(vertical and horizontal) |
||||
|
Camera |
1PC |
||||
|
Plate thickness |
1.7mm ( if different thickness, please note us) |
||||
